Size Comparison Charts

By Christian Ankerstjerne

Introduction

When discussing the survivability of tanks, the physical size of the tank is of great significance. Especially the profile is important, as especially anti-tank guns would generally attempt to fire against the side of a tank, rather than the front. In addition, the height and firing height of a tank is important, both in terms of target size, and in terms of how well the tank can be concealed in a hull-down position.

Profile Comparison Charts

These charts, designed by David Pastore, illustrate the difference in profile between the Panther, Tiger I, Churchill Mk VII, and Medium Tank, M4.

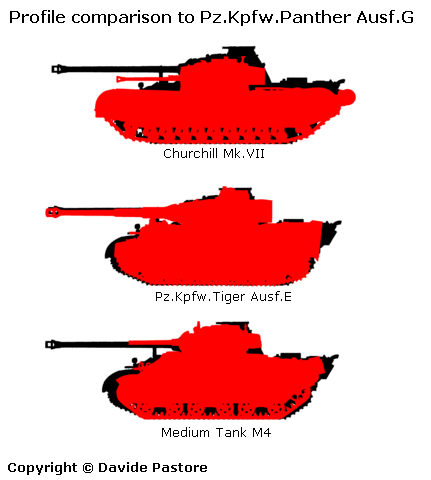

Comparison to the Panther.

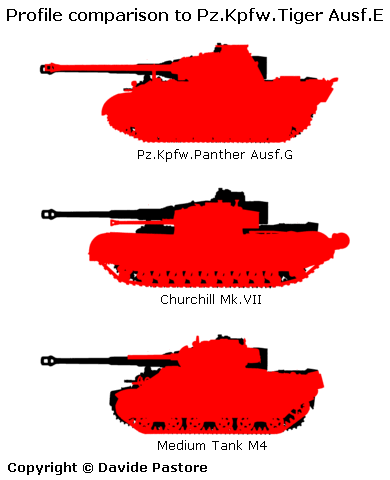

Comparison to the Tiger I.

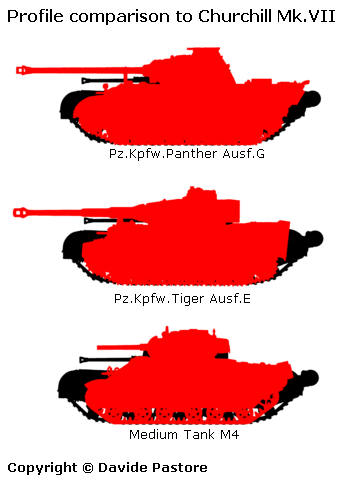

Comparison to the Churchill Mk VII.

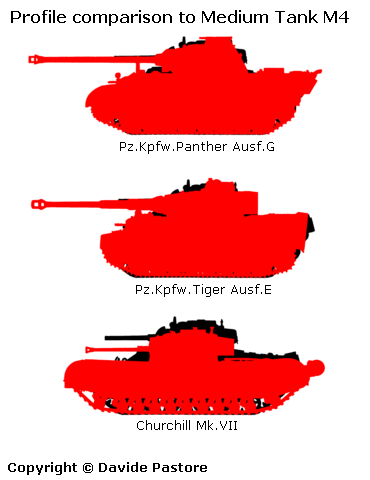

Comparison to the Medium Tank, M4.

Height Comparison Charts

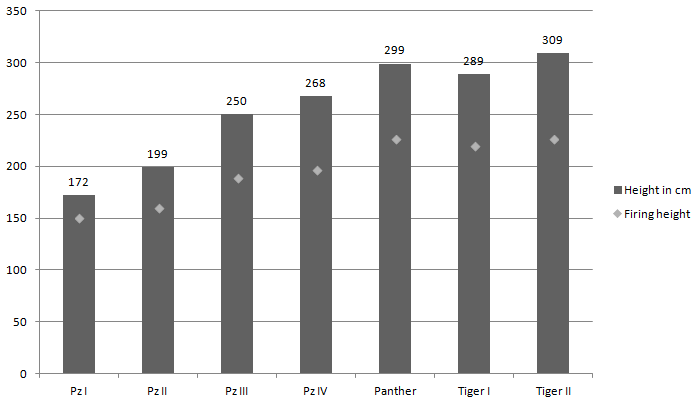

Height and firing height of the main Panzer types.
