Panzersturmmörser (Tiger-Mörser)
In March 1943, Krupp proposed the construction of a heavy assault mortar. In May, they presented a design called Bär (bear). The Bär mounted a 305 mm gun, capable of firing high-explosive and concrete-piercing ammunition, and used elements from the Panther and Tiger I.
On 27 May 1943, Alkett presented a design which mounted a 380 mm mortar on a Tiger I chassis. On this design, the superstructure was mounted at the rear, as on the Ferdinand. It was decided to pursue Alkett's design, rather than Krupp's.
Development
The rear-mounted superstructure, which would have required that the engine be moved to the front of the vehicle, was quickly abandoned. The simpler design of the Panzersturmmörser (armored assault mortar) was presented on 20 October 1943. The original intention was the build Tiger I chassis specifically for the Panzersturmmörser. Due to delays, however, it was decided to use existing Tiger I chassis sent back from the front for field repairs.
A modified 380 mm anti-submarine rocket launcher, the 38 cm Raketenwerfer 61 L/5,4, was used for the Panzersturmmörser. It fired a spin-stabilized 345 kg rocket at a speed of 300 meters per second.
The first three vehicles were not completed until August 1944, with a further ten built in September 1944, and the final five in December 1944.
Operational History
The Panzersturmmörsers were organized in special Sturm-Mörser-Kompanien (assault mortar companies). The first unit, Sturm-Mörser-Kompanie 1000, was sendt to Warsaw with two Panzersturmmörsers during the Warsaw uprising. Two more units, Sturm-Mörser-Kompanie 1001 and Sturm-Mörser-Kompanie 1002, were created, with an authorized strength of four Panzersturmmörsers each. Sturm-Mörser-Kompanie 1000 and Sturm-Mörser-Kompanie 1001 fought against the Western Allies in the Ardennes in December 1944.
There is anecdotal evidence of Panzersturmmörsers fighting Allied tanks. One story reports how three Medium Tank, M4's were destroyed by a single rocket. In another instance, a former US soldier recalls how a Panzersturmmörser destroyed several Medium Tank, M4's, leaving holes in the ground the size of the vehicle itself. While the Panzersturmmörser was well-armored, it was in no way suited for fighting tanks, given its excessive weight and slow loading time.
Sturm-Mörser-Kompanie Organization
The Panzersturmmörser was organized into independent companies. In the 15 September 1944 table of organization and equipment, each company was authorized to have 77 men and four Panzersturmmörser.
By January 1945, the company had also become authorized to receive 20 Panzerfaust, as well as four prime movers.

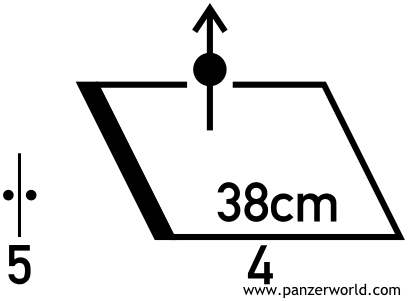

Item | Strength | Organization Chart |
---|---|---|
Manpower | 79 | |
Panzersturmmörser | 4 | |
Light machine guns | 5 | |
Trucks | 11 | |
Prime movers | 4 | |
Panzerfaust | 20 |
Issue History
Unit | Number | Assigned | Shipped | Notes |
---|---|---|---|---|
Panzer-Ersatz-Abteilung 500 | 1 | - | - | Cast iron |
Sturm-Mörser-Kompanie 1000 | 1 | - | - | Fahrgestell (chassis)Look up term 250 091 |
1 | - | - | ChassisFahrgestell Look up term 250 230 |
|
2 | 26 October 1944 | 1 December 1944 |
|
|
Sturm-Mörser-Kompanie 1001 | 4 | - | 11 October 1944 |
|
Sturm-Mörser-Kompanie 1002 | 2 | 8 December 1944 | 11 December 1944 | ChassisFahrgestell Look up term 250 237 |
2 | 13 December 1944 | 13 December 1944 |
|
Unit Strength
Unit | Date | Combat ready | Maintenance |
---|---|---|---|
Sturm-Mörser-Kompanie 1000 | 30 December 1944 | 4 | - |
15 February 1945 | 3 | 1 | |
Sturm-Mörser-Kompanie 1001 | 30 December 1944 | 4 | - |
15 February 1945 | 4 | - | |
Ersatzheer | 1 March 1945 | - | - |
Technical Information
Panzersturmmörser (Tiger-Mörser) | |
---|---|
Crew | |
Crew |
|
Physical Characteristics | |
Weight | 65 t |
Length | 6.28 m |
Width | 3.57 m |
Height | 2.85 m |
Firing height | 2.00 m |
Ground clearance | 0.47 m |
Ground pressure | 1.24 kg/cm² |
Armor | |
Hull, front | 100-150 mm |
Hull, sides and rear | 60-80 mm |
Hull, top | 25-40 mm |
Hull, bottom | 25 mm |
Performance | |
Maximum speed | 37.5 km/h |
Road speed | 30 km/h |
Cross-country speed | 20-25 km/h |
Maximum grade | 35° |
Trench crossing | 2.30 m |
Vertical obstacle | 79 cm |
Fording depth | 170 cm |
Fuel capacity | 540 l |
Mileage (road) | 4.50 l/km |
Mileage (cross-country) | 6.35 l/km |
Cruising range | 120 km |
Cross-country range | 85 km |
Engine | |
Make and model | Maybach HL 230 P 45 |
Type | Water cooled |
Cylinders | 12 |
Displacement | 23 000 cc |
Fuel | Gasoline |
Max. governed speed | 2500 rpm |
Net h.p. | 650 |
Armament | |
Main weapon | 38 cm Stu M |
Secondary weapon |
|
Auxillary weapon | 9 mm MP (2) |
Ammunition Storage | |
Main weapon | 14 |
Secondary weapon | 2550 |
Auxillary weapon | 384 |
